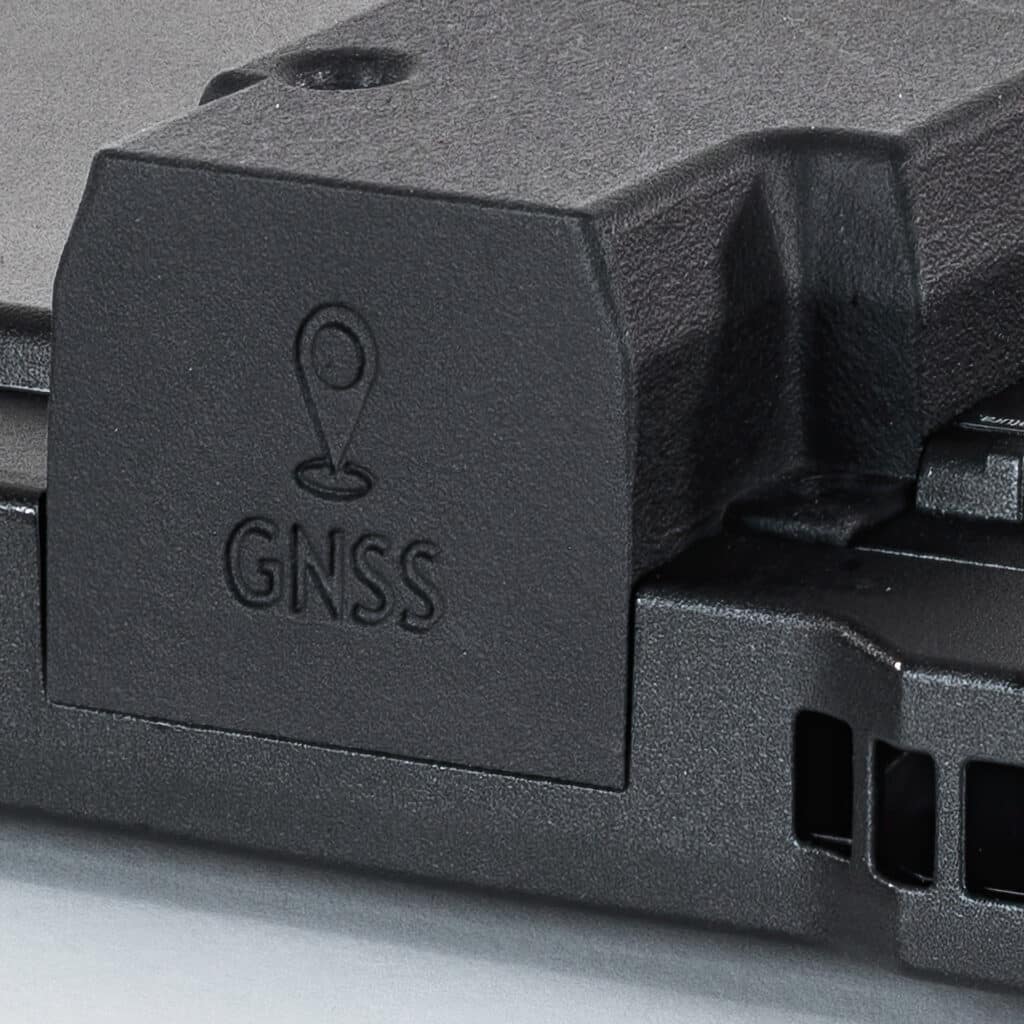

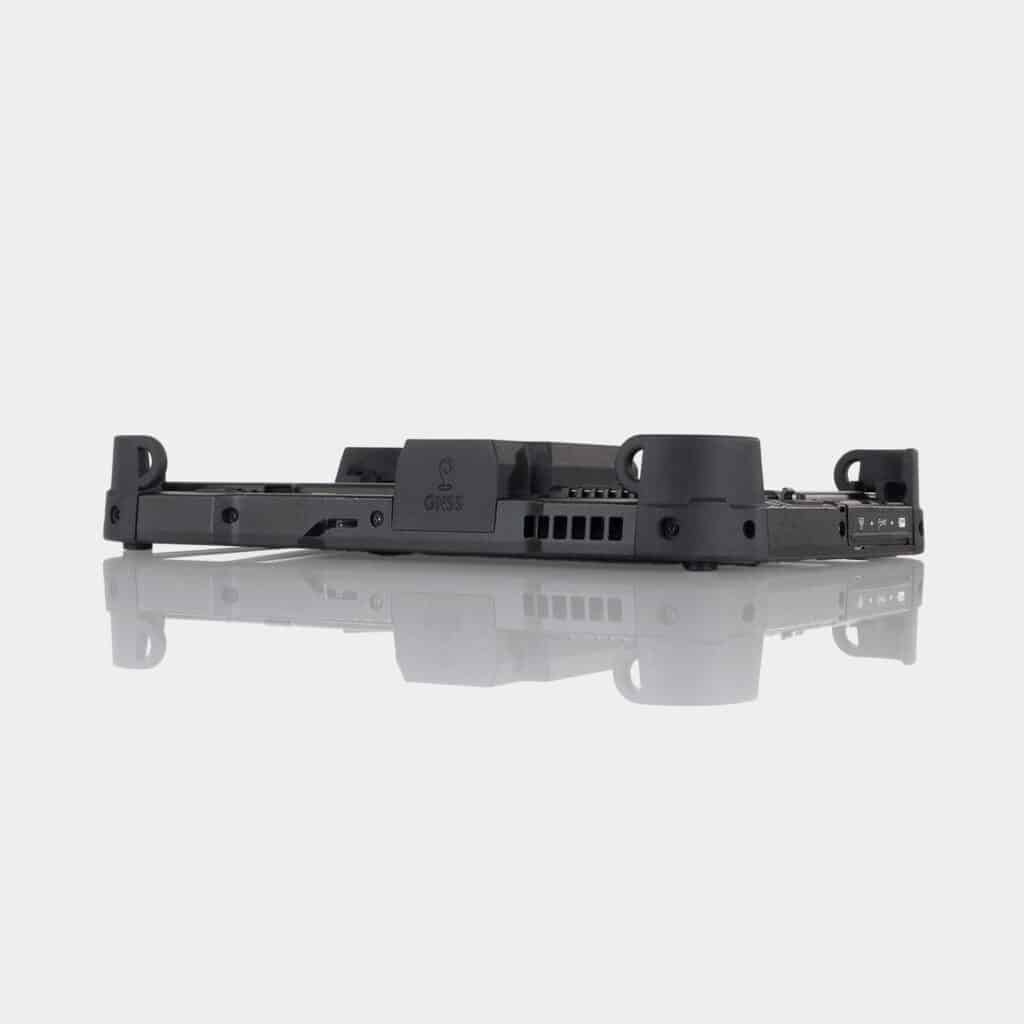

U-BLOX module
retrofittable

For more precise location measurements:
the dedicated GPS solution for the TOUGHBOOK G2.
Can be retrofitted to the top optional slot.
PWA_G2_oGPS G2_Optional GPS

PWA_G2_oGPS

facts

  • Original configurable GPS module:
    U-BLOX 8 UBX-M8030-KT
  • Tested tightness by PWA’s own rain simulator
  • Measurement precision identical to original module:
    less than 2.5 m (2D)

Performance

  • Processes signals from up to 72 satellites simultaneously
  • Supports AssistNow online/offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
  • Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
  • USB specification 2.0
  • Auto Baud Rate up to 115200 bps
  • Update Rate: single GNSS: 18 Hz (e.g. GPS solo) / multiple GNSS: 10 Hz (e.g. GPS + GLONASS)
  • Sensitivity max. -167 dBm
  • Cold start within approx. 26 seconds
  • Hot start within approx. 1 second
PWA_G2_oGPS
