Long Range
Bluetooh

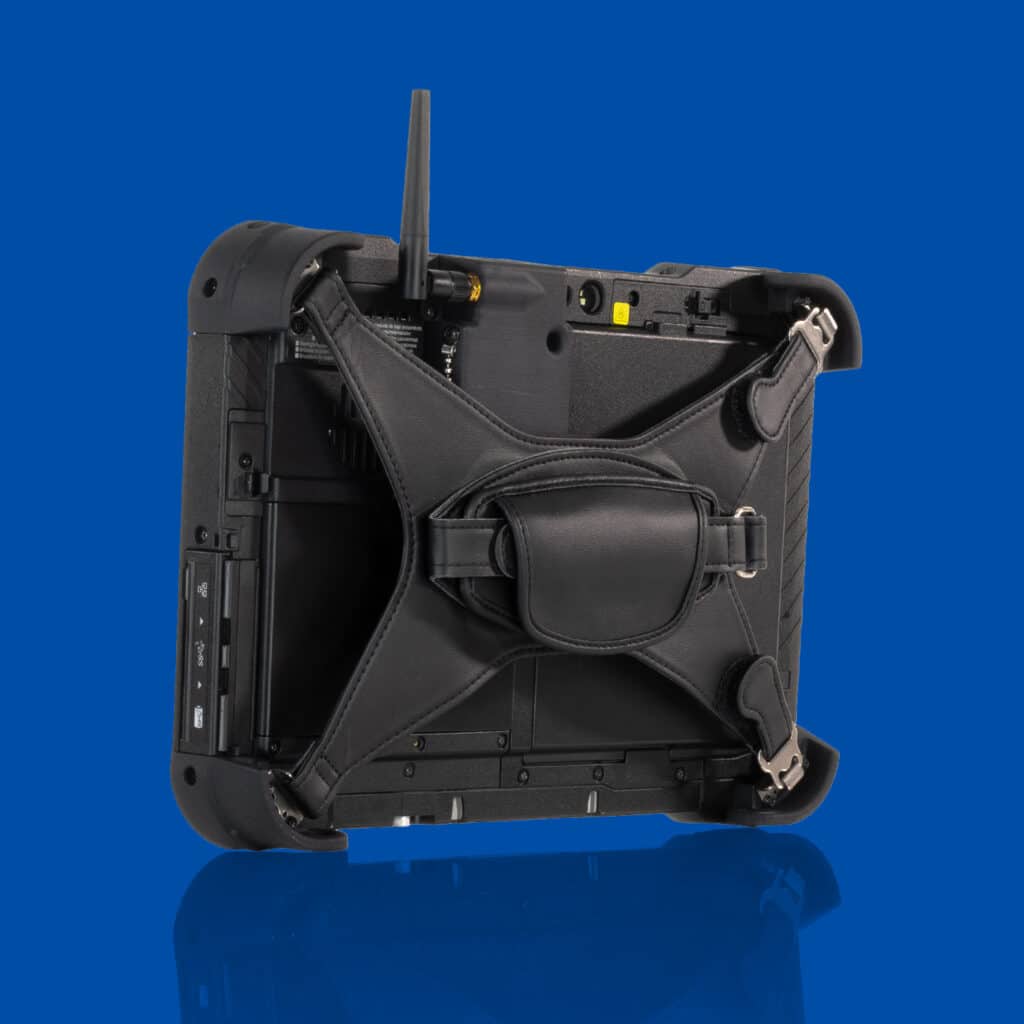

The LRBT RADIO module is directly integrated on the
TOUGHBOOK G2 and allows a straight wireless
connection between the total station and the
tablet via long range Bluetooth. The solution is
also suitable for use at very long measuring distances.
PWA_G2_lrBT G2_LRBT RADIO

Trimble und Leica Tachymeter Funk

facts

Results from range tests:

  • 850 m directed to the total station
  • 450 m away from the total station
  • Tested tightness by PWA rain simulator

Fall protection by:

  • GIANT CORNER GUARDS and hand strap
  • Antenna connector is protected by rear positioning on TOUGHBOOK G2 (protrudes if required)
Fully integrated via upper optional USB interface

Performance

Details of the built-in electronics:

  • Compatible e.g. with LEICA Radio Handle RH17 & RH18
  • Frequency: 2.4 – 2.483 GHz
  • Power level: +13 dBm
  • Consumption: 44 mA @ 3 V
  • Aerial terminal: RP-SMA
